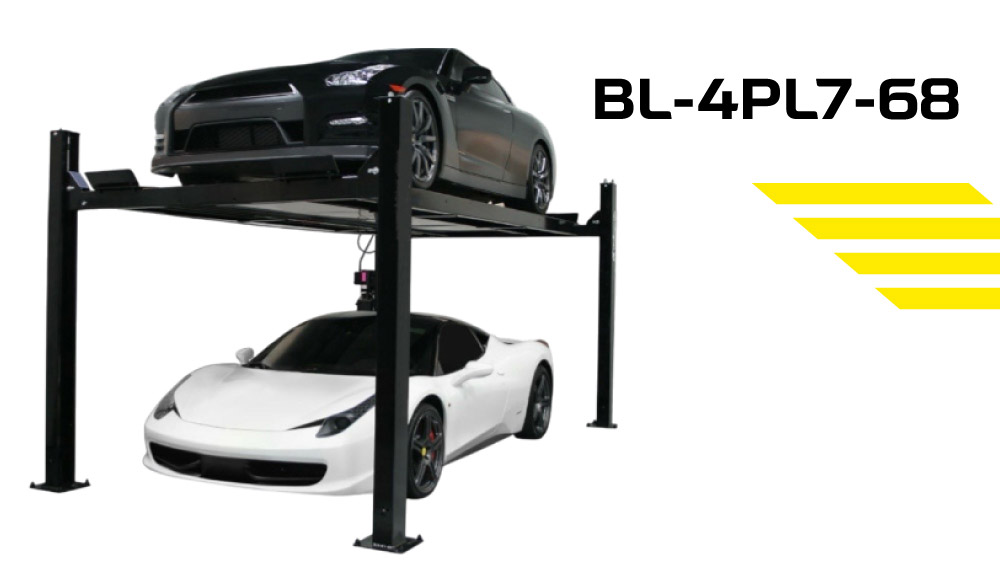

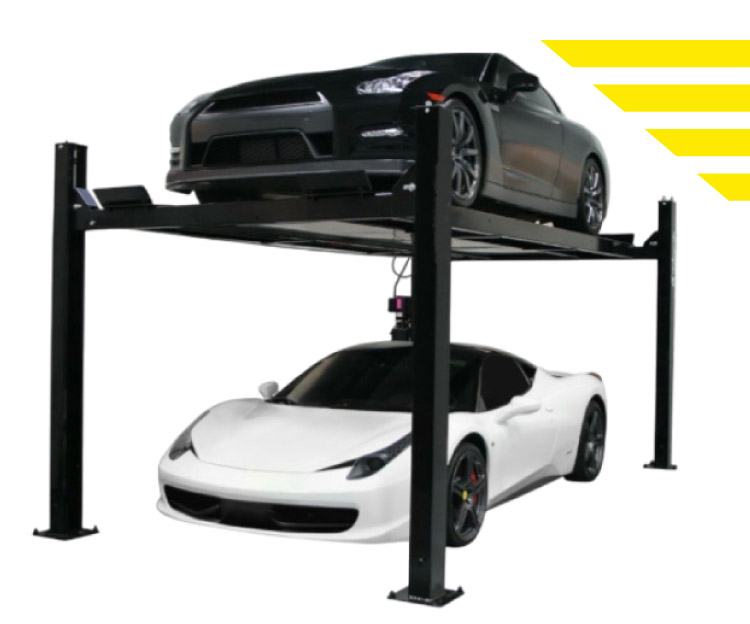

Storage Lift
Storage Lift is part number BL-4PL7-68
Professional-grade home enthusiast lifts allow you to store and service your vehicles efficiently.

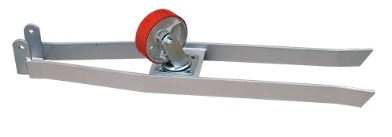

Casters
Casters provide the ability to move your 7K or 9K Home Storage Lift around the shop. (Set of 4).
BL-4PL7-68 Specifications :
| Model Number | BL-4PL7-68 |
| Lifting Capacity | 7,000 Ibs – 9,000 Ibs |
| Length Overall | 16′ 3 1/2″, 17′ 5 1/2″, 19′ 5 1/4″ |
| Width Overall | 8′ 4 1/2″, 9′ 4 1/4″ 10′ 7 1/4″ |
| Inside Columns | 7′ 8 1/8″, 7′ 11″, 9′ 2″ |
| Between Columns | 12′ 3 1/2″, 13′ 4 1/2″, 15′ 4 3/4″ |
| Height of Columns | 6′ 7 1/2″, 7′ 1/2″, 8′ 1/2″ |
| Height of Runways (Floor to runway) | 5 3/4″, 7″ |
| Width of Runways | 20″ |
| Width Between Runways | 38″ |
| Rise Height (Runway at top lock position) | 68 1/8″, 73 1/4″, 85 1/2″ |
| Max. Wheelbase | 141 1/2″, 155″, 179″ |
| Clearance Height | 63″, 67 3/4″, 80″ |
| Std. Motor/Voltage | 1HP/115v or 2HP/230v |
| Min. Rec. Bay Size | 10’*20′, 11’*20′, 11’*22′, 14’*22′ |
